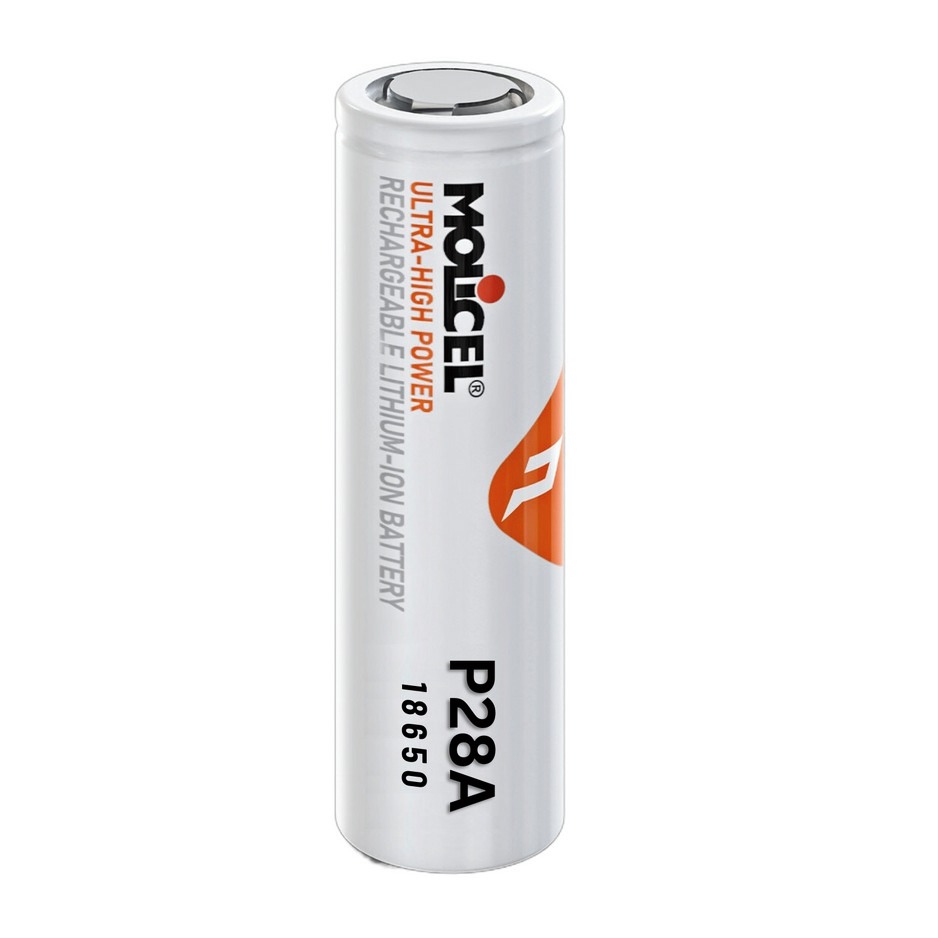

MOLICEL INR-18650-P28A PORTABLE LITHIUM_ ION CELL

Name: MOLICEL INR-18650-P28A PORTABLE LITHIUM_ ION CELL
Brand: MOLICEL
SKU: BAT-MCL-1
Availability: OutOfStock

Original price was: ₹450.Current price is: ₹405.

Out of stock

26 people are viewing this right now

Estimated Delivery : Up to 4 business days
Free Shipping & Returns : On all orders over $200

Guaranteed Safe And Secure Checkout

Model No – INR-18650-P28A
HSN Code – 85076000
Click here to download – Datasheet ⬇️

CELL CHARACTERISTICS

Capacity
- Typical = 2800 mAh 10.3 Wh
- Minimum = 2700 mAh 9.56 Wh
Cell Voltage
- Nominal = 3.6 V
- Charge = 4.2 V
- Discharge = 2.5 V
Charge Current
- Standard = 2.8 A
- Maximum = 8.4 A
Charge Time = Standard 1.5 hr
Discharge Current = Maximum 35 A
Internal Resistance
- AC (1 KHz) = 20 mΩ (Max)
- DC (10A/1s) = 20 mΩ
Ambient Temperature
- Charge = 0°C to 60°C
- Discharge = -40°C to 60°C
Energy Density
- Volumetric = 589 Wh/l
- Gravimetric = 219 Wh/kg

Tech Summary

Experience unmatched battery performance with the MOLICEL INR-18650-P28A 3.6V 2800mAh. This high-quality cell boasts a typical capacity of 2800mAh (10.3 Wh) and a nominal voltage of 3.6V, ideal for demanding applications. With a maximum discharge current of 35A and a quick standard charge time of just 1.5 hours, it delivers both power and reliability. The cell’s internal resistance is impressively low at 20 mΩ, ensuring efficiency and longevity.
