Name: MOLICEL INR-21700-P50B Lithium-Ion Cell
Brand: MOLICEL
SKU: BAT-MCL-6
Availability: OutOfStock

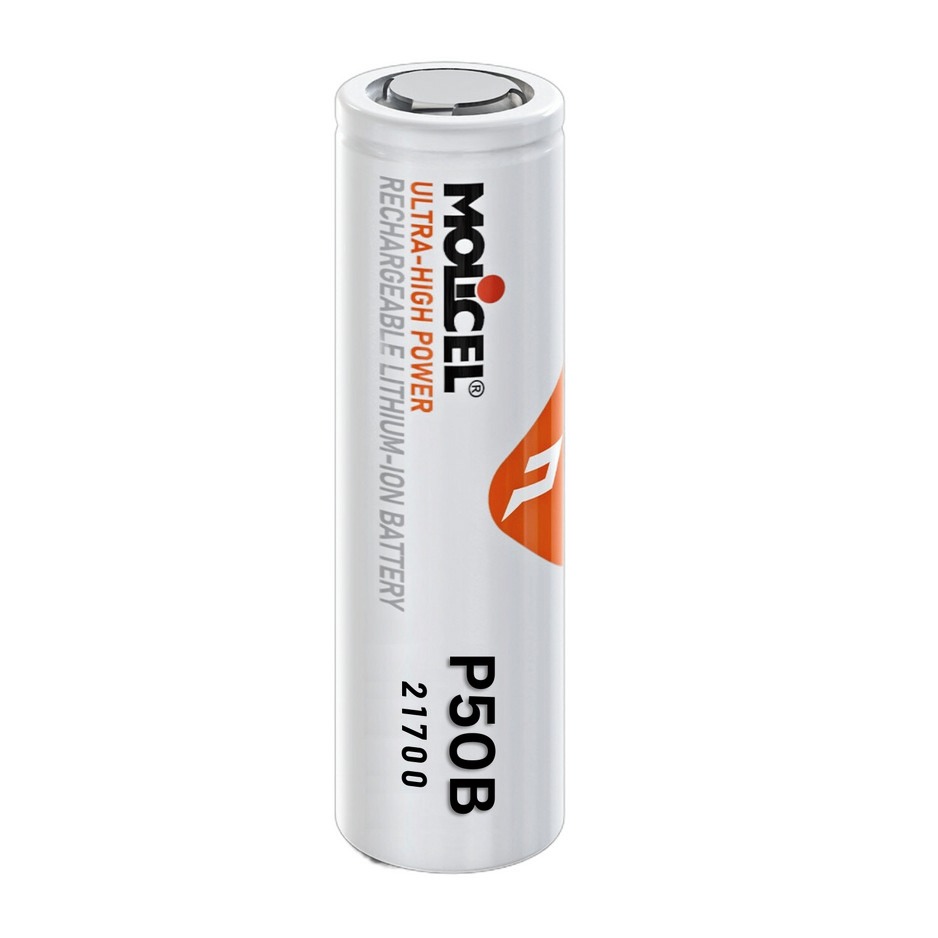

MOLICEL INR-21700-P50B Lithium-Ion Cell

Original price was: ₹1,200.Current price is: ₹865.

Out of stock

27 people are viewing this right now

Estimated Delivery : Up to 4 business days
Free Shipping & Returns : On all orders over $200

Guaranteed Safe And Secure Checkout

Model No – INR-21700-P50B
HSN Code – 85076000
Click here to download – Datasheet ⬇️

CELL CHARACTERISTICS

Capacity
- Typical = 5000 mAh1 8.0 Wh
- Minimum = 4850 mAh1 7.5 Wh
Cell Voltage
- Nominal = 3.6 V
- Charge = 4.2 V
- Discharge = 2.5 V
Charge Current
- Standard = 5.0 A
- Maximum = 25 A (70°C cut off)
Charge Time = Standard 1.5 hr
Discharge Current = Continuous 60A (80°C cut-off)
Ambient Temperature
- Charge = -20°C to 60°C
- Discharge = -40°C to 60°C
Energy Density
- Volumetric = 714 Wh/l
- Gravimetric = 260 Wh/kg
Typical Impedance
- AC (30%SOC) = 6.5 mΩ
- DC (50%SOC) = 12.8mΩ

Tech Summary

The MOLICEL INR-21700-P50B, available at TheBatteryWorld.in, exemplifies superior battery performance with a typical capacity of 5000 mAh1 (8.0 Wh) and a nominal voltage of 3.6 V. Designed for both efficiency and durability, it supports a maximum charge current of 25 A and a continuous discharge current of 60 A with an 80°C cut-off. Impressively versatile, it operates in ambient temperatures ranging from -40°C to 60°C. Perfect for both high-demand and everyday applications, this cell guarantees reliability and longevity with a standard charge time of just 1.5 hours.
