Name: 3115 FPV Motor
Brand: QPT
SKU: QPT-900KV
Availability: InStock

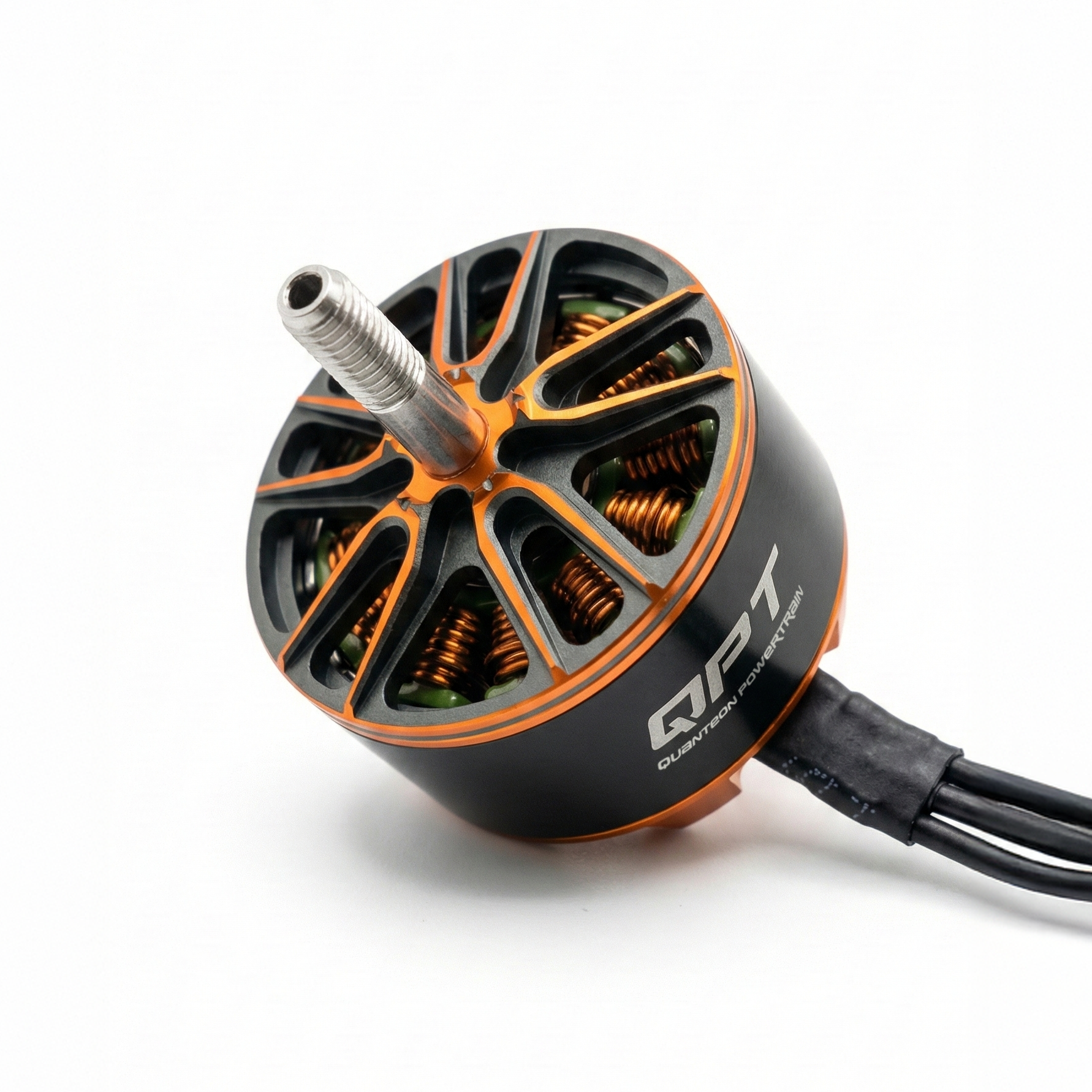

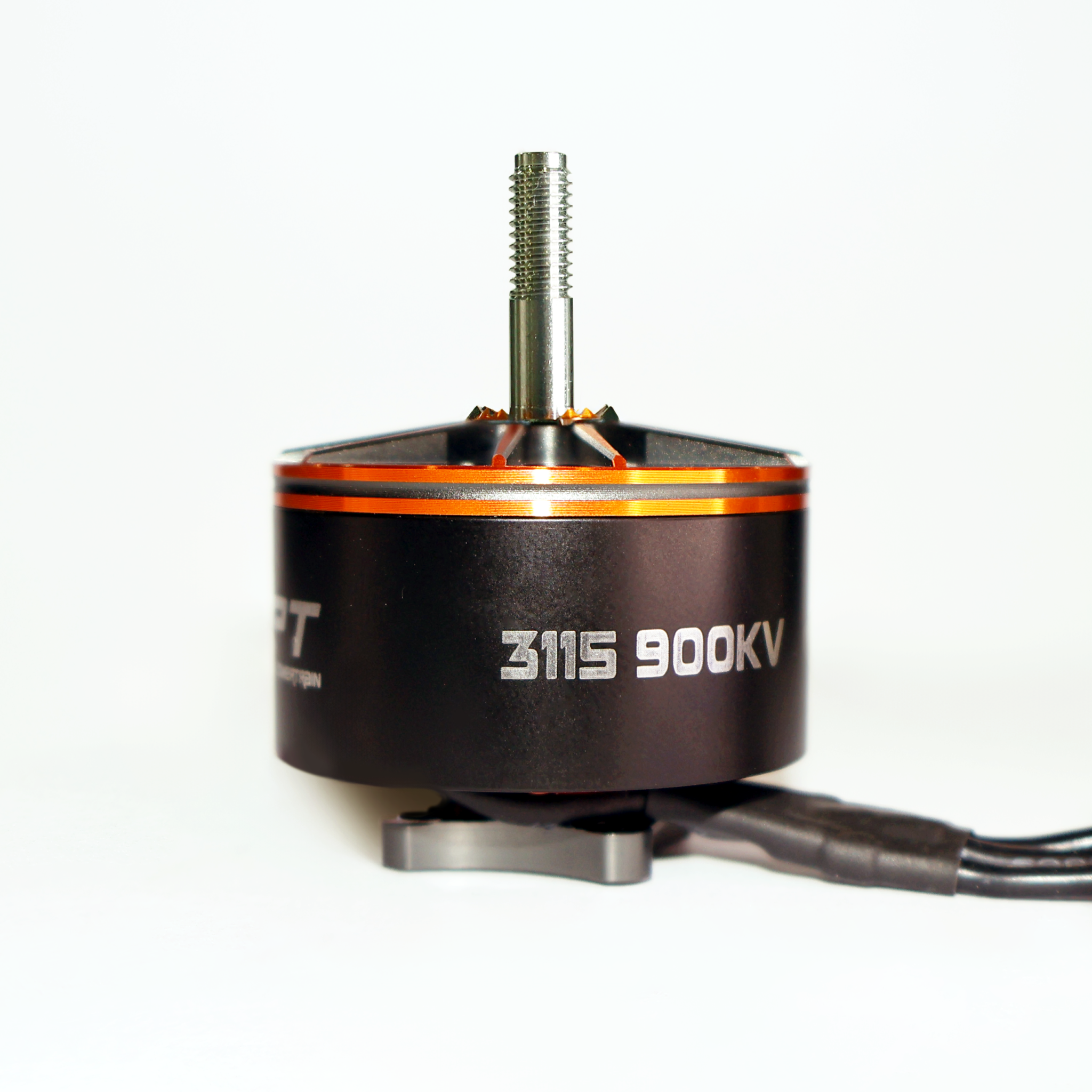

3115 FPV Motor

₹2,999

10 products sold in last 13 hours

Selling fast! Over 18 people have in their cart

100 in stock

21 people are viewing this right now

Estimated Delivery : Up to 4 business days
Free Shipping & Returns : On all orders over $200

Guaranteed Safe And Secure Checkout

This FPV brushless motor is our entry-level model, designed to meet the needs of a wide range of customers. It offers an optimal balance between cost effectiveness and uncompromising quality, making it equally suitable for beginners and experienced professionals.

General specifications:

RPM/V	900 KV
Internal Resistance	54 ± 3 mΩ
No load Current	0.67
Max thrust	4250 gm
Max Power	1700
Max Current	72A
Motor Size	ф37.3 * 48.8 mm
Motor Weight (Incl. Cable)	108 g

Motor Drawing:

Performance Curve:

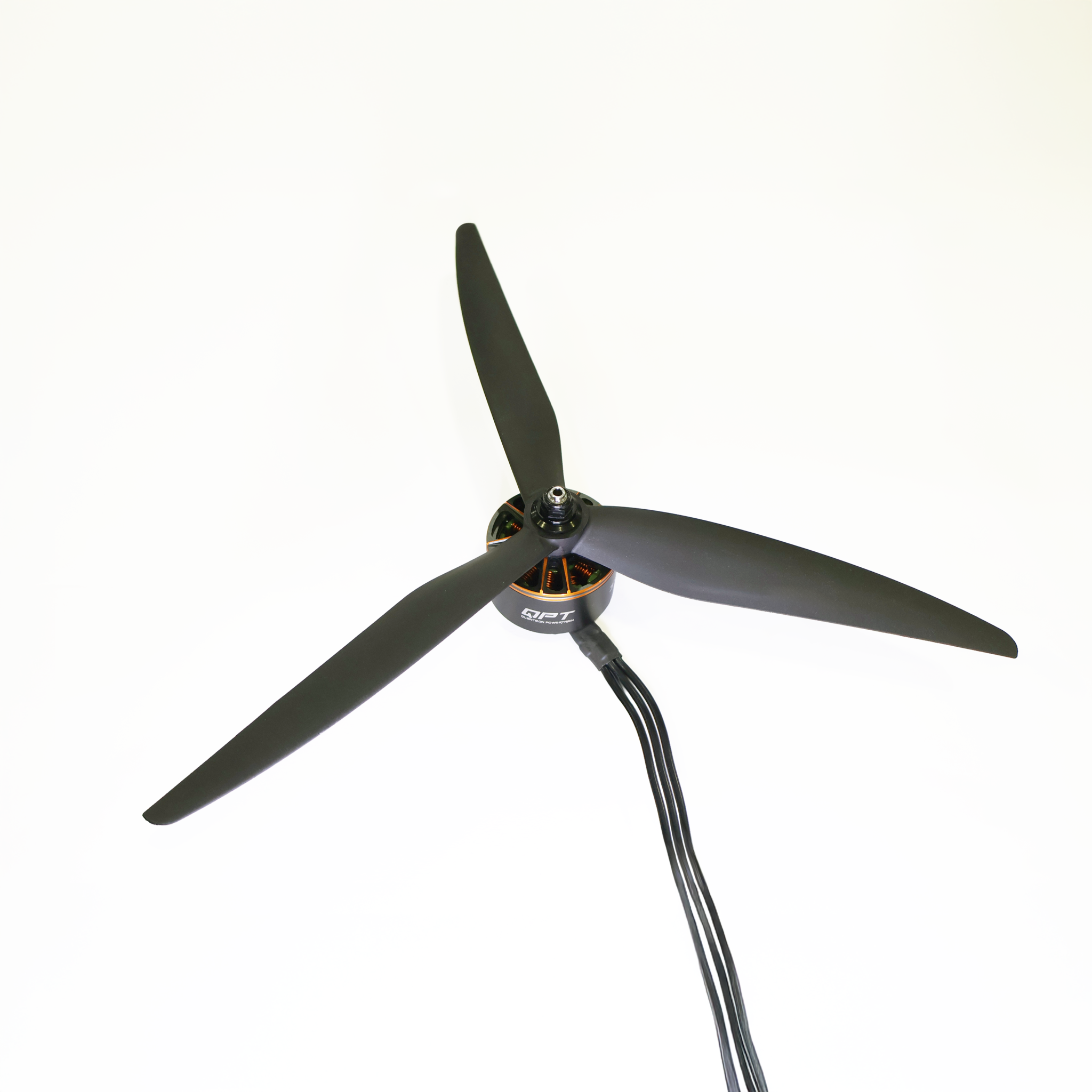

Ambient Temperature: 25 C ; Propeller: G 10 x 50 x 3 ; Battery 6S

Sr.No	Throttle (%)	RPM	Voltage (V)	Current (A)	Thrust (g)	POWER (V*I)	EFF% (g/w)	Avg Temperature
1	10	6300	24.23	4.36	718	105.64	6.80	75 °C
2	20	8057	24.19	8.88	1200	214.81	5.59
3	30	9214	24.14	13.46	1600	324.92	4.92
4	40	10500	24.09	18.7	2000	450.48	4.44
5	50	11100	24.03	24.69	2320	593.30	3.91
6	60	11714	23.94	30.55	2667	731.37	3.65
7	70	11800	23.91	33.52	2800	801.46	3.49
8	80	12600	23.84	40.18	3160	957.89	3.30
9	85	13500	23.75	50.2	3560	1192.25	2.99
10	90	13800	23.68	56.47	3800	1337.21	2.84
11	95	13900	23.62	58.6	3940	1384.13	2.85
12	100	14140	23.57	63.5	4047	1496.70	2.70
**Measured on Inhouse Testing Setup.
