2807 FPV Motor
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200

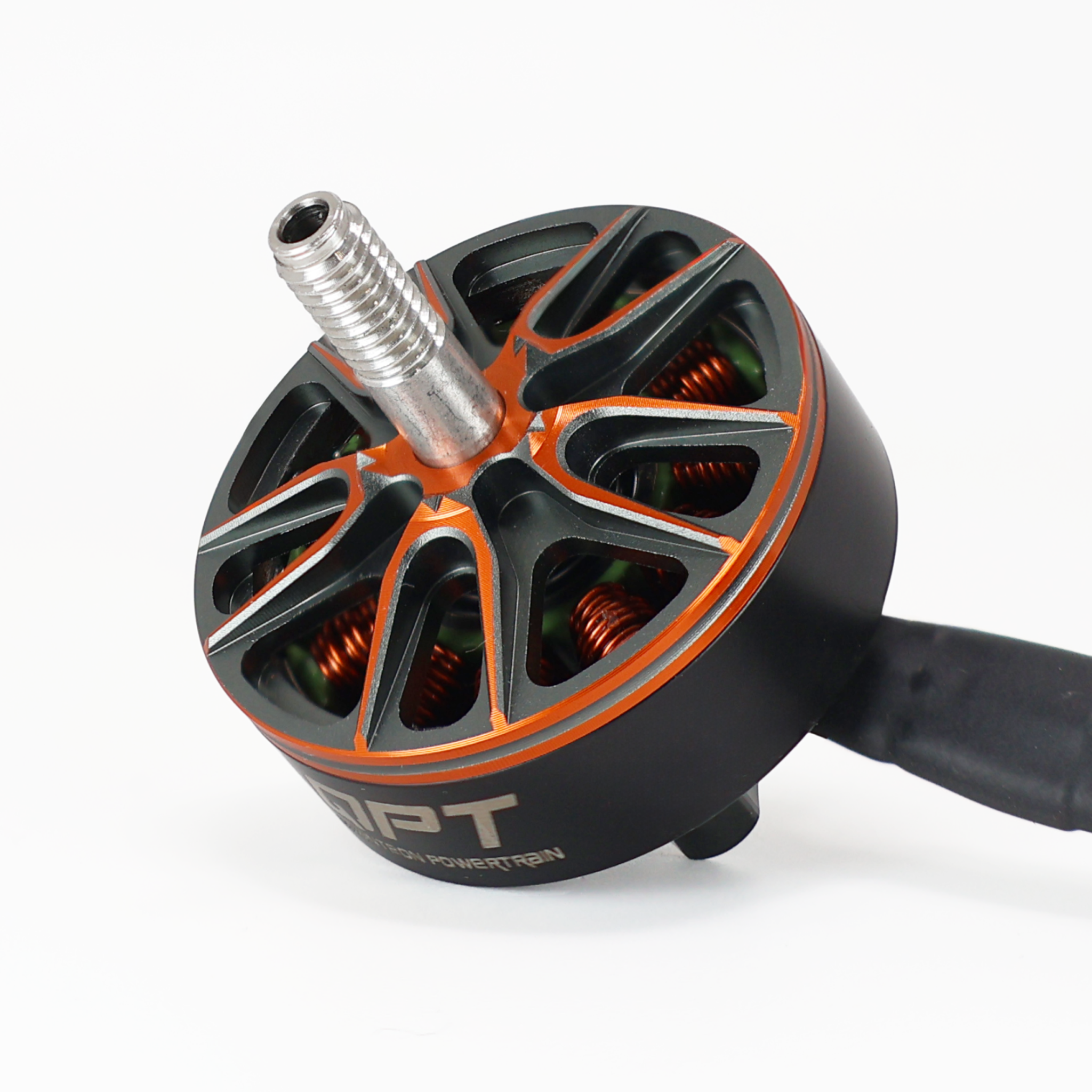

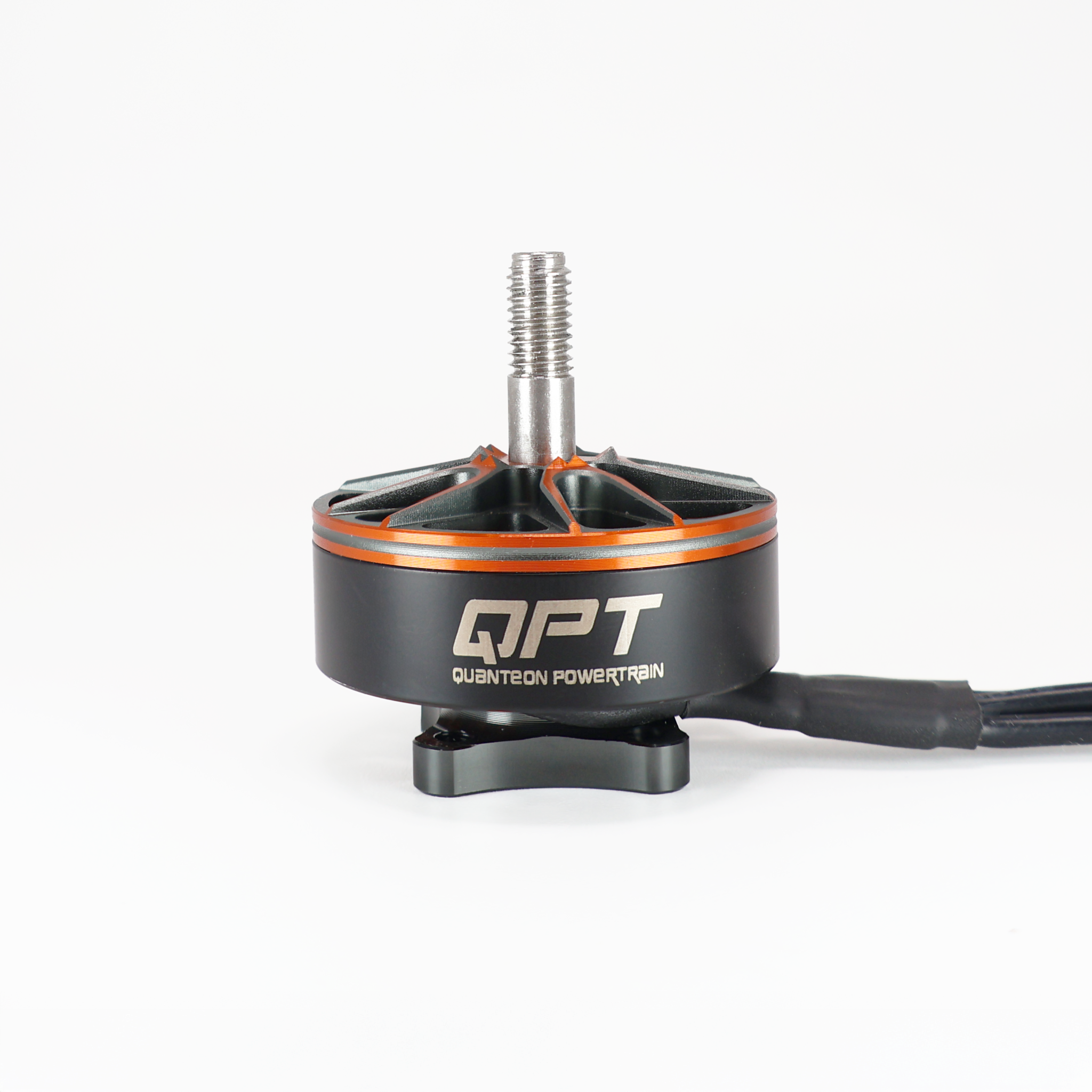

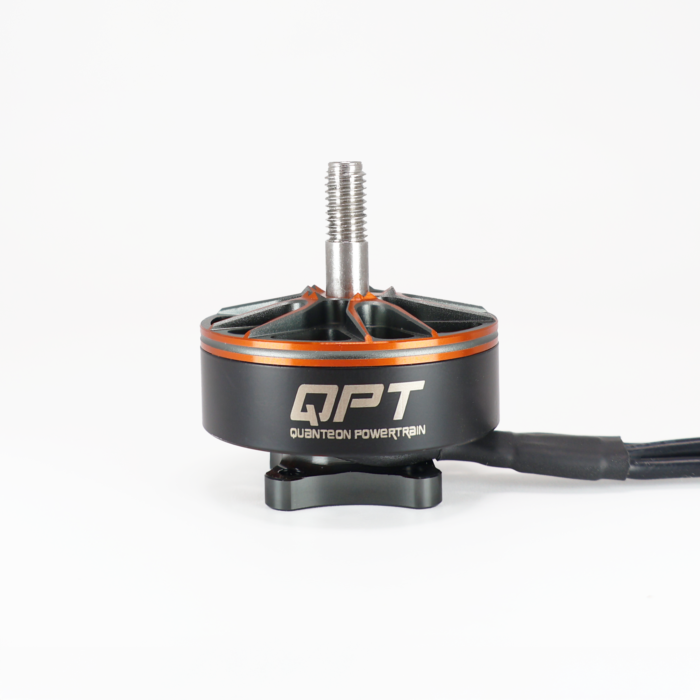

2807 FPV Motor
The 2807 FPV Motor is built for high-performance freestyle and long-range FPV drone applications that require strong thrust, smooth throttle response, and reliable efficiency. Designed for 6S drone setups, this motor delivers powerful acceleration and stable flight performance for demanding aerial maneuvers.
With a maximum thrust of 2500g and power output up to 1250W, the 2807 FPV Motor is ideal for freestyle quadcopters, cinematic FPV drones, and racing builds. Its durable construction and optimized efficiency provide excellent stability, control, and consistent power delivery during high-speed flights.
The motor is engineered to support professional FPV pilots looking for reliable performance, smooth responsiveness, and improved flight precision.
General specifications:
| RPM/V | 1300 KV |
| Internal Resistance | 86 ± 3 mΩ |
| Max thrust | 2500 gm |
| Max Power | 1250 W |
| Max Current | 50A |
| Motor Size | Ñ„34 * 38 mm |
| Motor Weight (Incl. Cable) | 56 g |
Motor Drawing:
Performance Curve:
Ambient temperature: 25°C | Propeller: GF 7040  | Battery: 6S
| Throttle (%) |
RPM | Voltage (V) |
Current (A) |
Thrust (g) |
POWER (V*I) |
EFF% (g/w) |
Avg Temperature |
| 30 | 8914 | 24.26 | 2.27 | 340 | 55.07 | 6.17 | 70°C |
| 35 | 10271 | 24.25 | 3.36 | 448 | 81.48 | 5.50 | |
| 40 | 11271 | 24.23 | 4.9 | 578 | 118.73 | 4.87 | |
| 45 | 12943 | 24.21 | 6.98 | 775 | 168.99 | 4.59 | |
| 50 | 13643 | 24.19 | 8.3 | 886 | 200.78 | 4.41 | |
| 55 | 14250 | 24.14 | 11.58 | 1050 | 279.54 | 3.76 | |
| 60 | 16300 | 24.2 | 14.56 | 1220 | 352.35 | 3.46 | |
| 70 | 18200 | 24.05 | 20.84 | 1520 | 501.20 | 3.03 | |
| 80 | 19300 | 23.98 | 28.02 | 1821 | 671.92 | 2.71 | |
| 90 | 21000 | 23.85 | 35.76 | 2125 | 852.88 | 2.49 | |
| 100 | 21600 | 23.84 | 41.7 | 2225 | 994.13 | 2.24 | |
| **Measured on Inhouse Testing Setup. | |||||||
