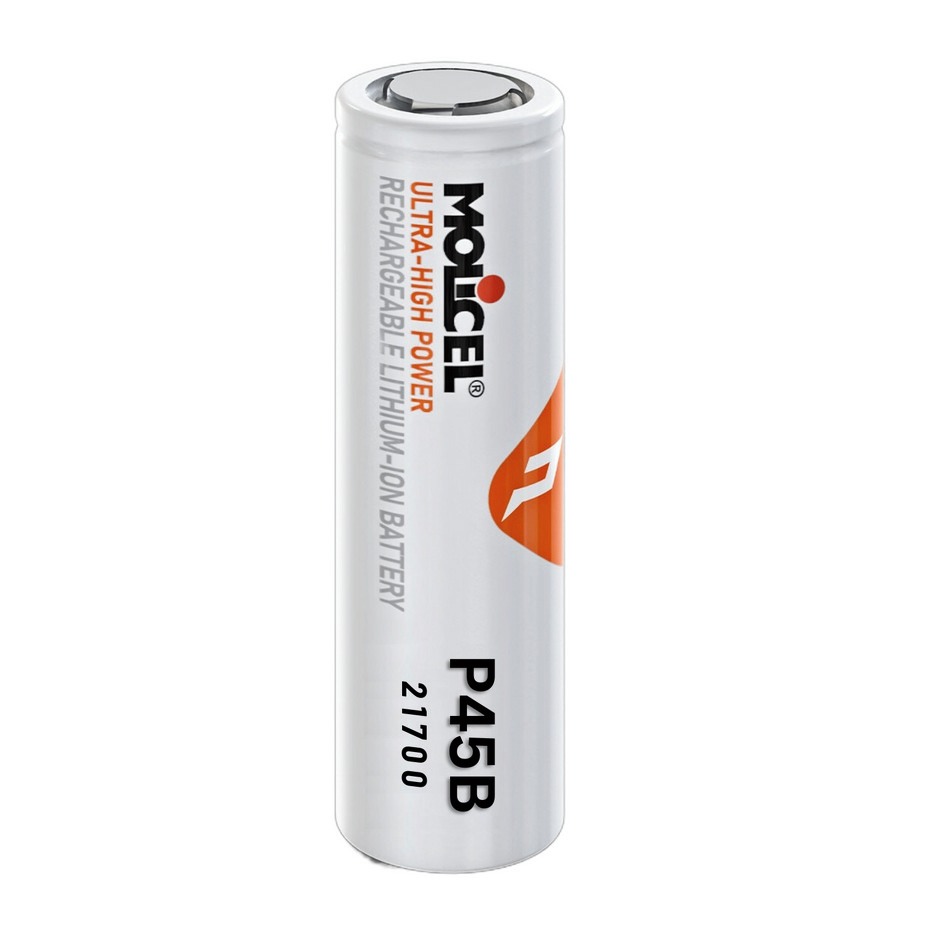

MOLICEL INR-21700-P45B Lithium-Ion Cell

Name: MOLICEL INR-21700-P45B Lithium-Ion Cell
Brand: MOLICEL
SKU: BAT-MCL-5
Availability: OutOfStock

Original price was: ₹756.Current price is: ₹630.

Out of stock

29 people are viewing this right now

Estimated Delivery : Up to 4 business days
Free Shipping & Returns : On all orders over $200

Guaranteed Safe And Secure Checkout

Model No – INR-21700-P45B
HSN Code – 85076000
Click here to download – Datasheet ⬇️

CELL CHARACTERISTICS

Capacity
- Typical = 4500 mAh 16.2 Wh
- Minimum = 4300 mAh 15.5 Wh
Cell Voltage
- Nominal = 3.6 V
- Charge = 4.2 V
- Discharge = 2.5 V
Charge Current
- Standard = 4.5 A
- Maximum = 13.5 A (70°C cut-off)
Charge Time = Standard 1.5 hr
Discharge Current = Continuous 45 A (80°C cut-off)
Temperature
- Charge = 0°C to 60°C
- Discharge = -40°C to 60°C
Energy Density
- Volumetric = 643 Wh/l
- Gravimetric = 242 Wh/kg
Typical Impedance
- AC (30%SOC) = 7 mΩ
- DC (50%SOC) = 15 mΩ

Tech Summary

Experience unparalleled power and efficiency with the MOLICEL INR-21700-P45B 3.6 V 4500 mAh, Boasting a typical capacity of 4500 mAh and nominal voltage of 3.6 V, this high-quality cell guarantees sustained performance with continuous discharge current up to 45 A and impressive charges within just 1.5 hours. Reliable in diverse conditions, it can charge safely between 0°C to 60°C and discharge from a freezing -40°C to a sweltering 60°C.
