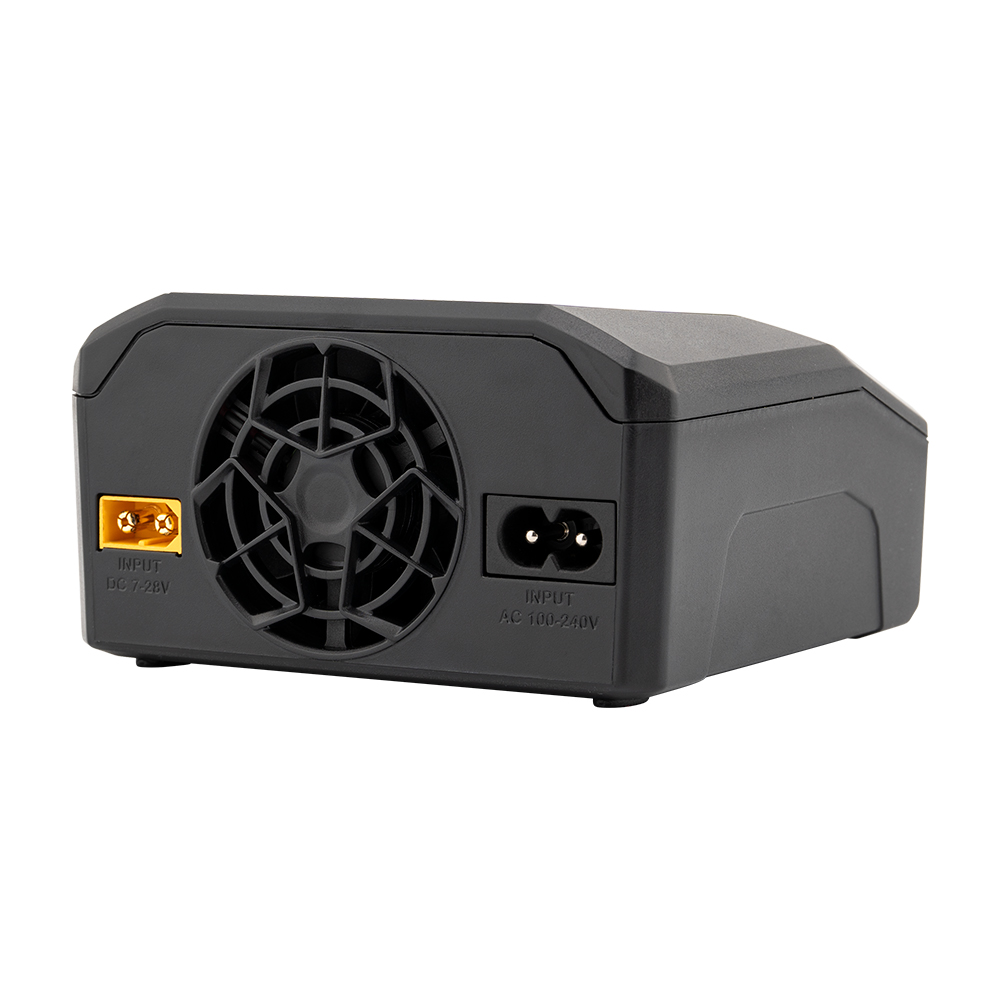

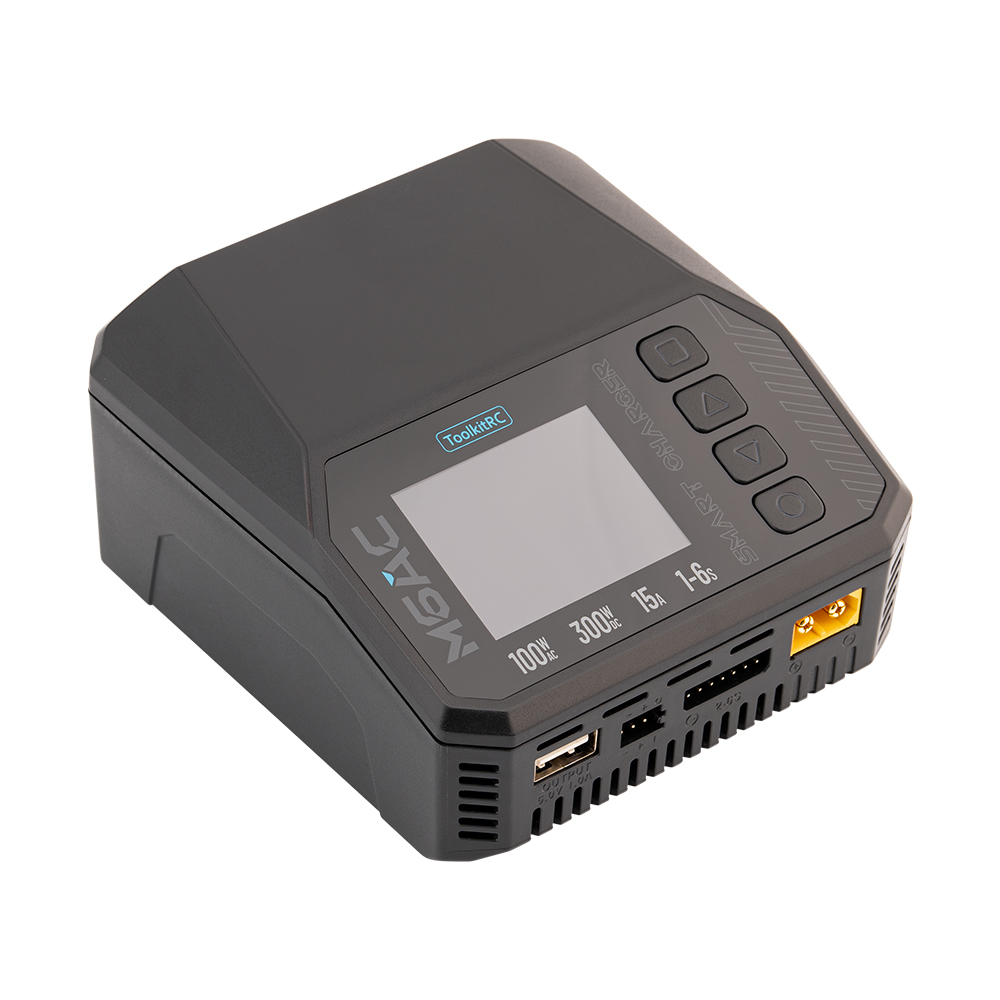

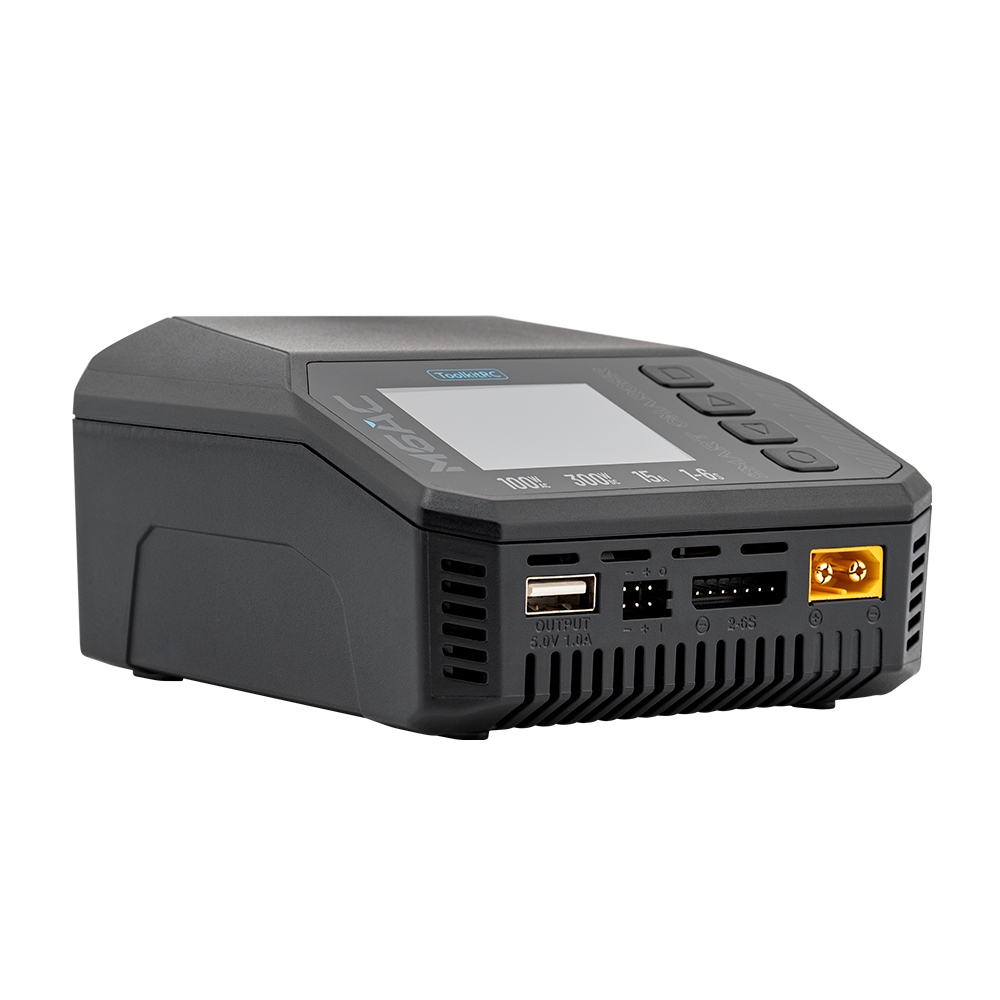

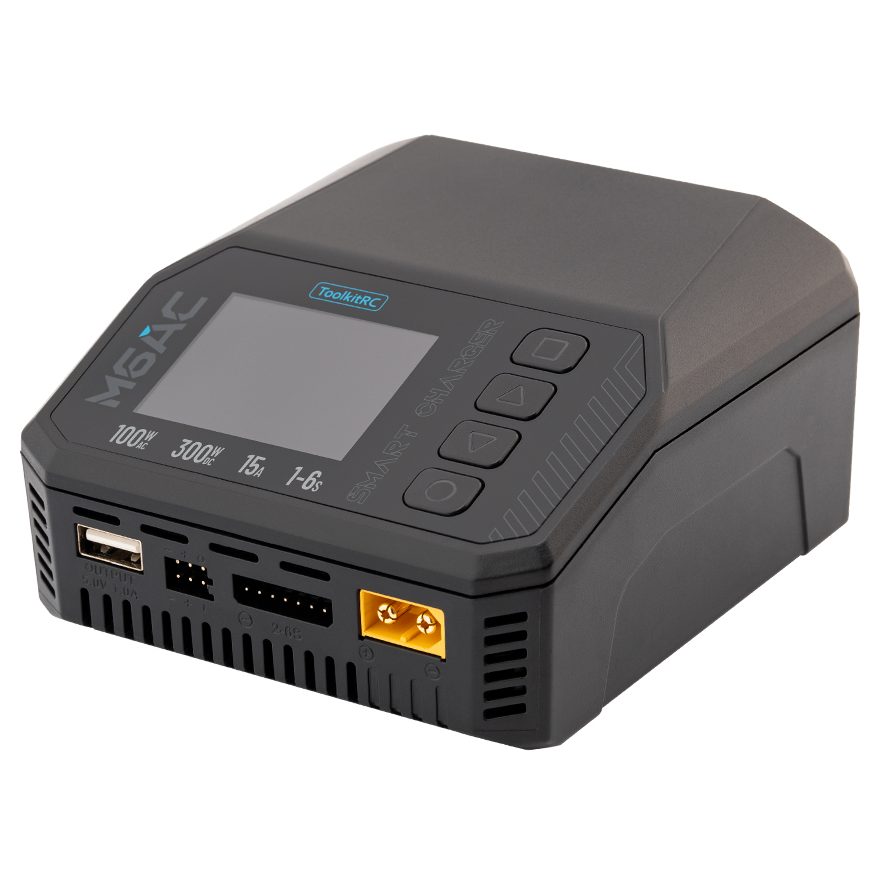

ToolkitRC M6AC 1-6S AC 100W DC 300W 15A Battery Charger – XT60
Out of stock
21 people are viewing this right now
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
SPEC
GENERAL
| Product size | 108×106×60mm |
| Product weight | 350g |
| Packing size | 144×158×63mm |
| Packaging weight | 510g |
| LCD | IPS 2.0″ LCD 320×240 px |
CHARGER
| Input voltage | AC 100-240V@MAX 120W |
| DC 7-35V@MAX 30A | |
| Battery type | LiPo LiHV LiFe Lilon LTO @1-6S |
| NiMH @1-16SÂ Â Pb@1-10S | |
| Balance current | 1000mA@4.2V |
| Balance accuracy | <0.005V |
| Charging power | 0.1-15A@300W |
| Discharging power | 0.1-15A@300W Recycle Mode |
| 0.1-3A@15W Internal Mode | |
| USBA | 5.0V/1.0A @10W or upgrade |
| Voltage | 1.0V-5.0V @1-6S |
| Internal resistance | 0.1mΩ-99mΩ @1-6S |
MEASURER
| PWM | 880us-2200us@20-400Hz |
| PPM | 880us-2200us×8 CH@20-50Hz |
| SBUS | 880us-2200us×16 CH@20-100Hz |
OUTPUT
| PWM | 500us-2500us@20-1000Hz |
| PPM | 880us-2200us×8 CH@50Hz |
| SBUS | 880us-2200us×16 CH@74Hz |
| Power | 0.5-15A@1-28V Mode: CC+CV |
IN THE BOX

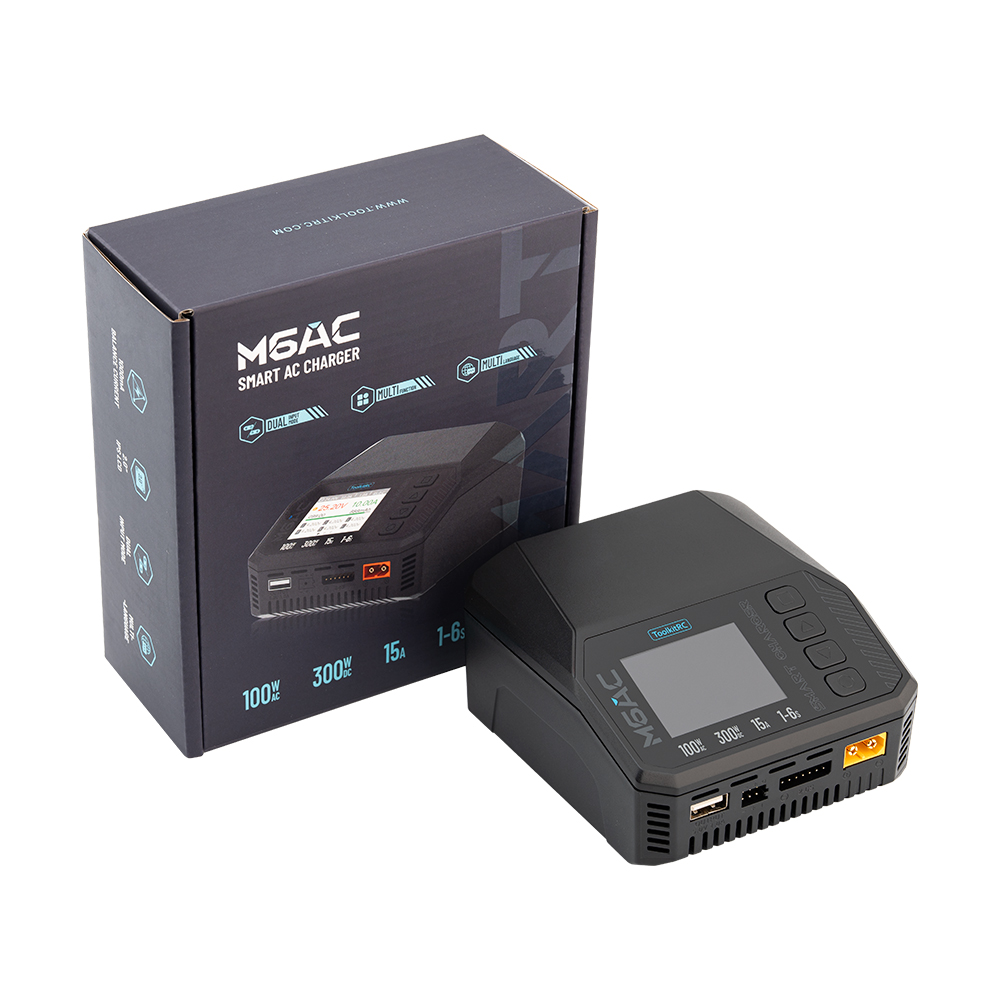

M6AC Charger × 1, AC Input Cable × 1, USB Cable × 1, Quick Manual × 1, Screen Protector × 1
