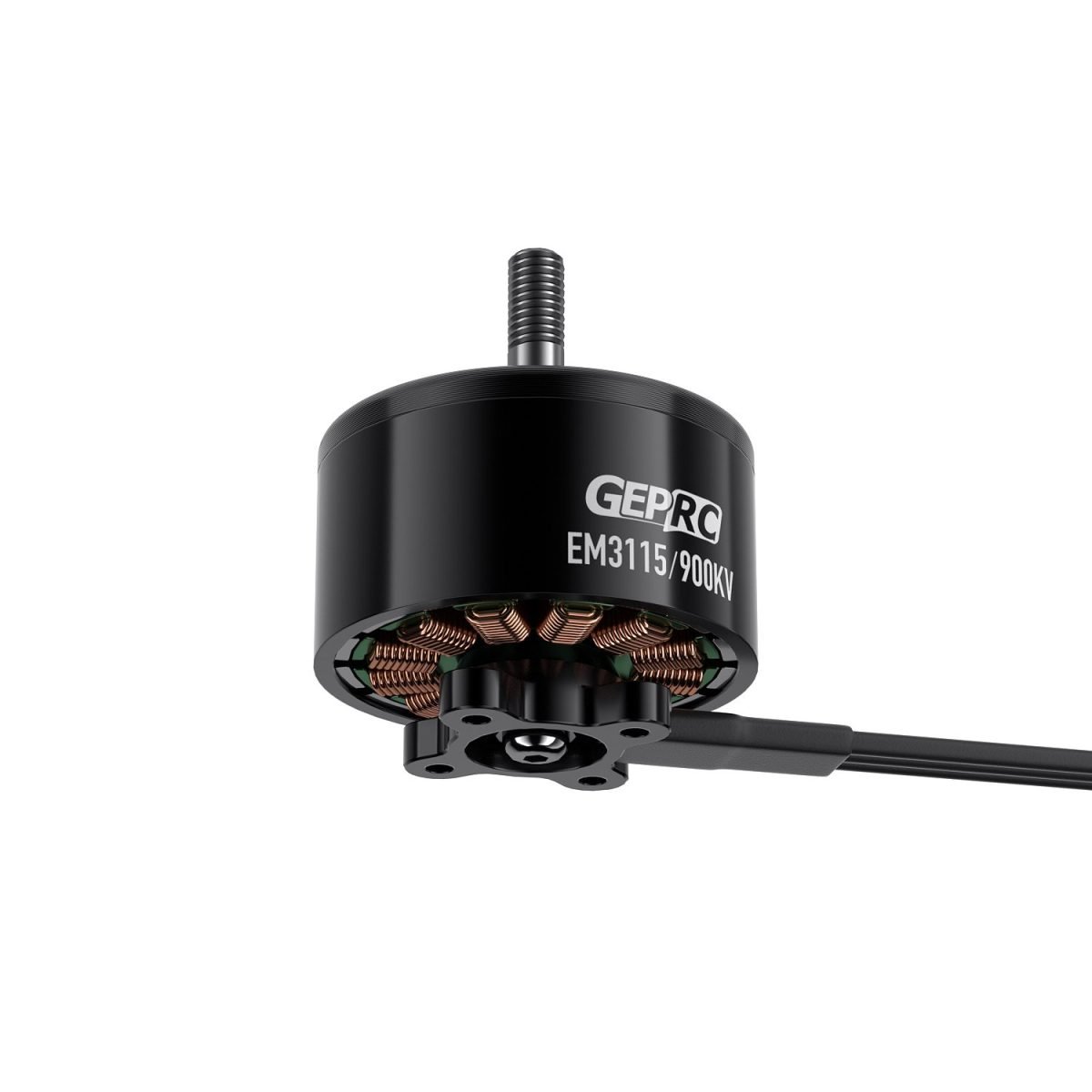

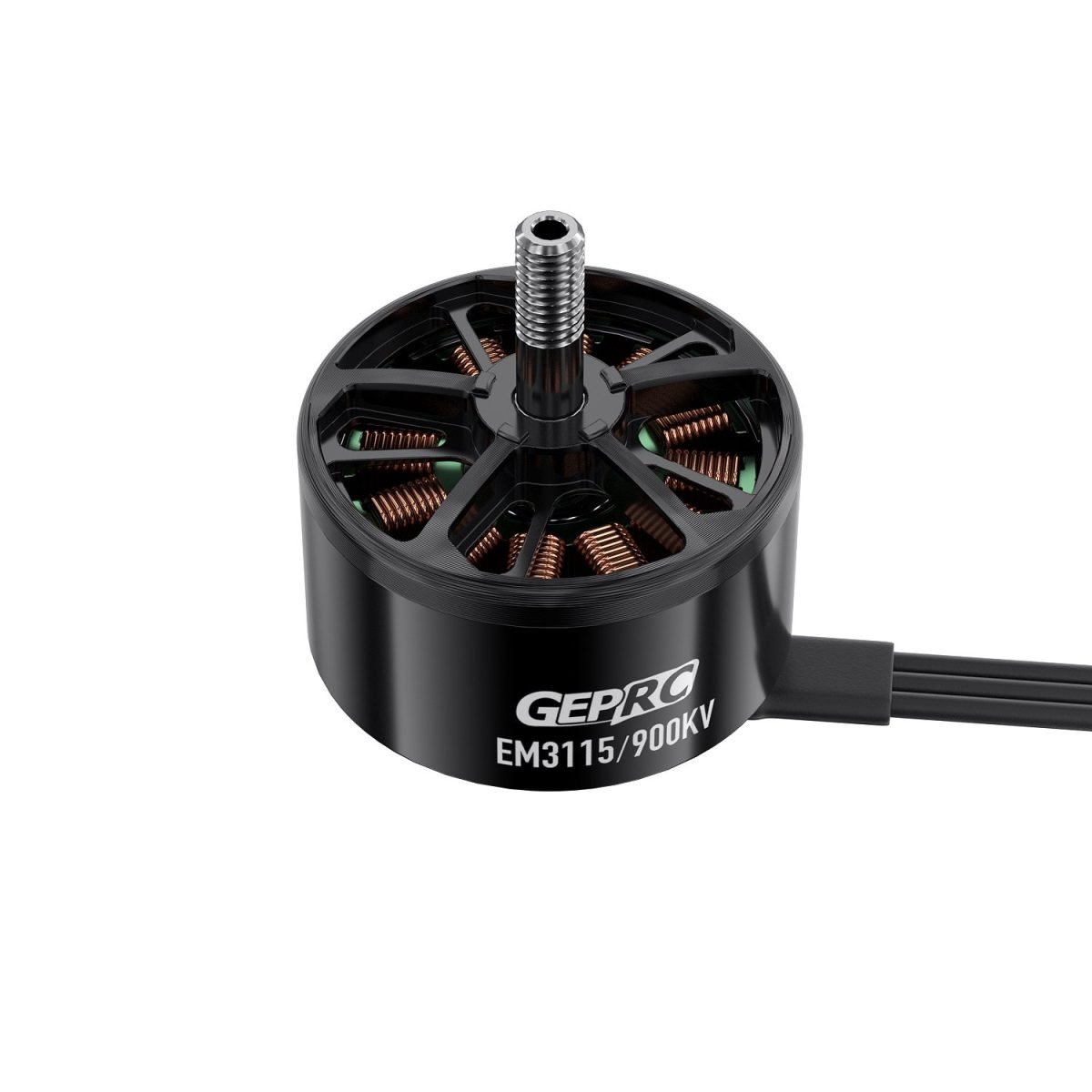

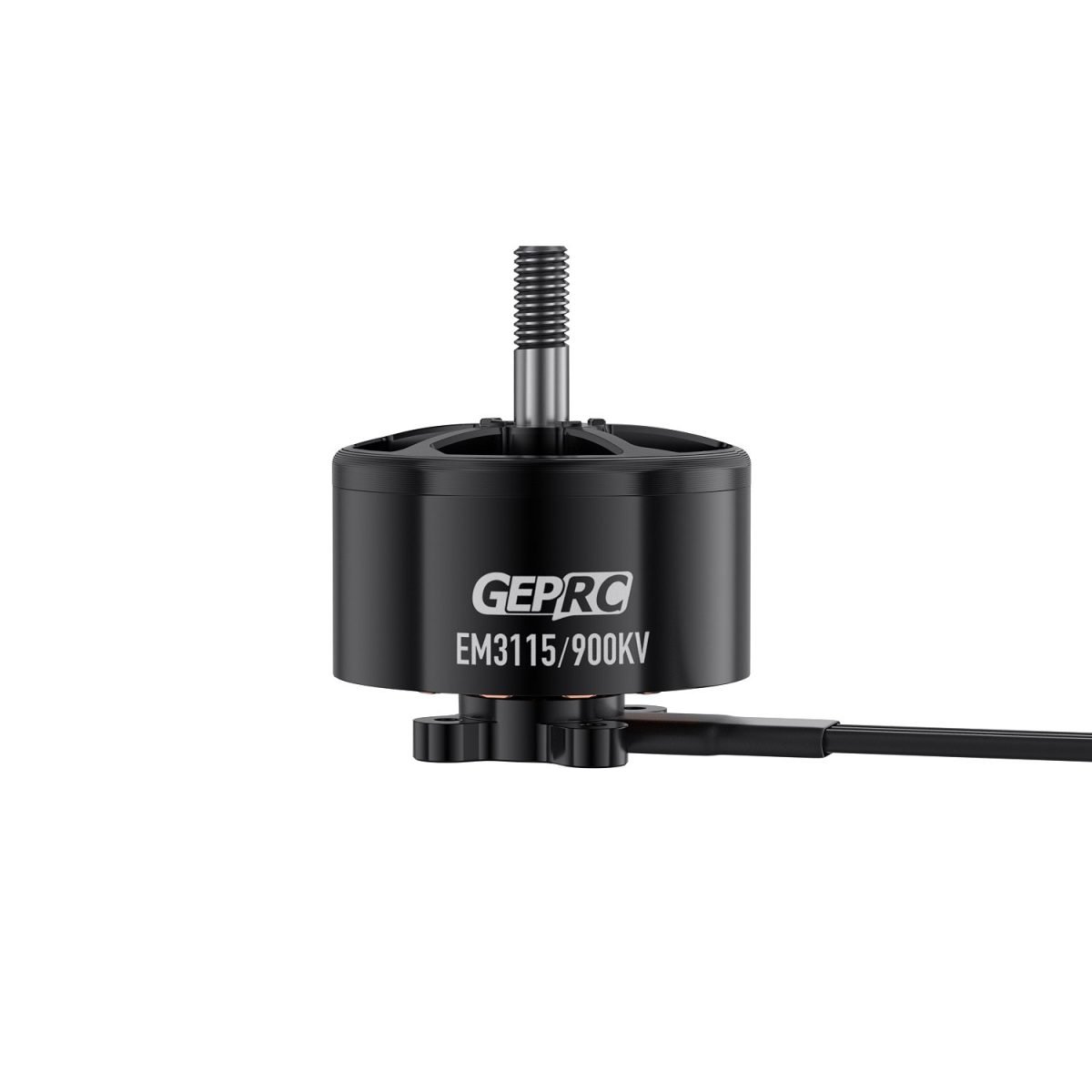

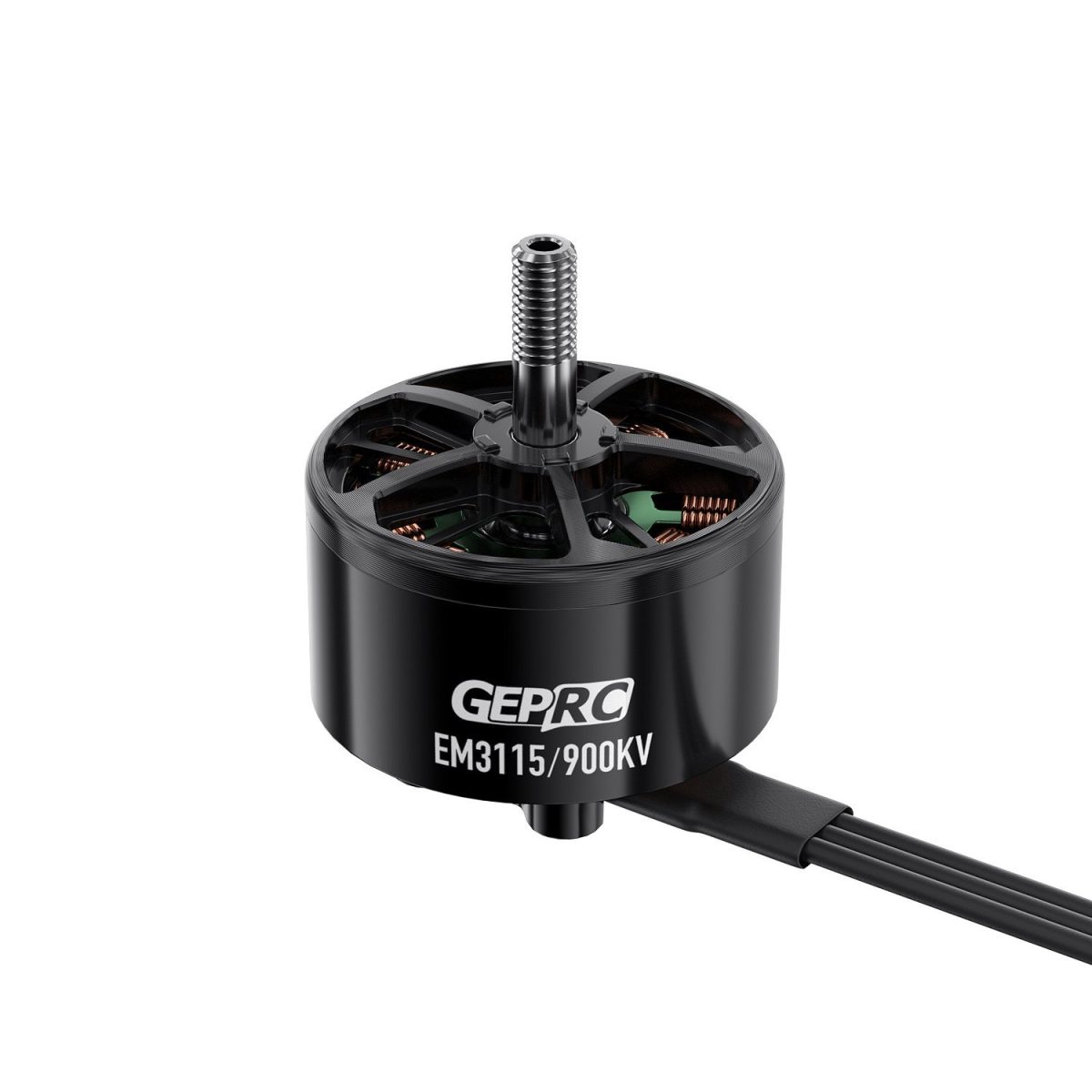

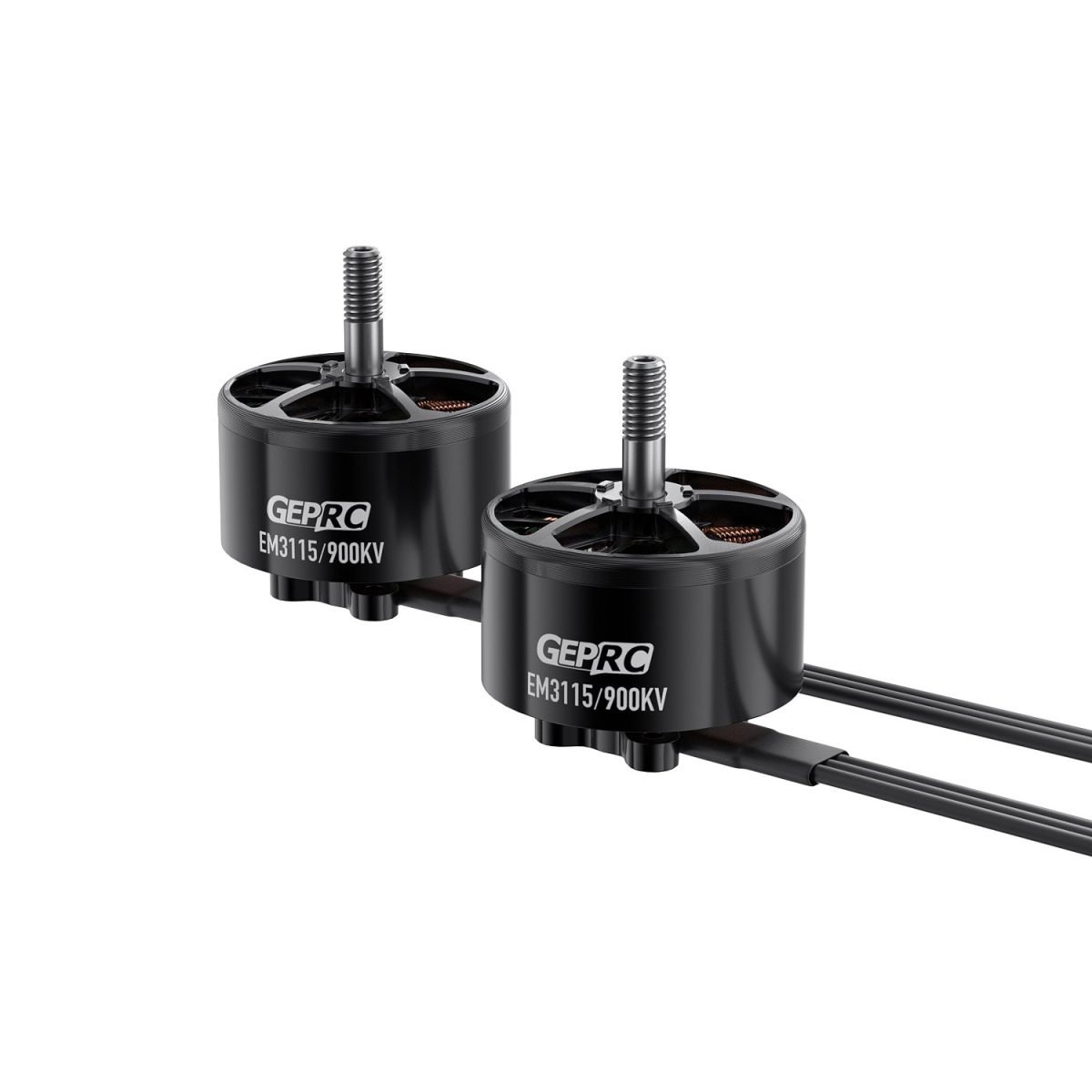

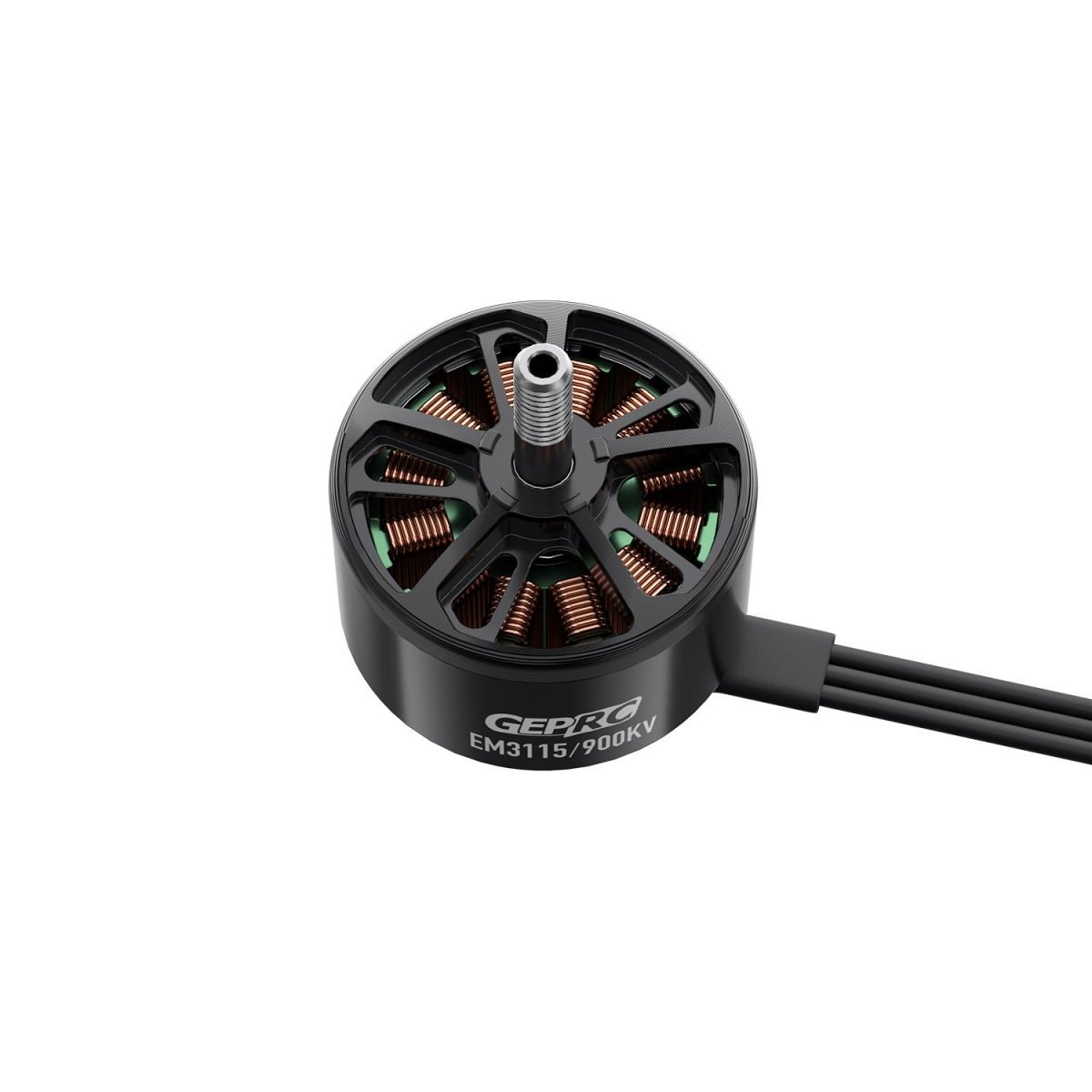

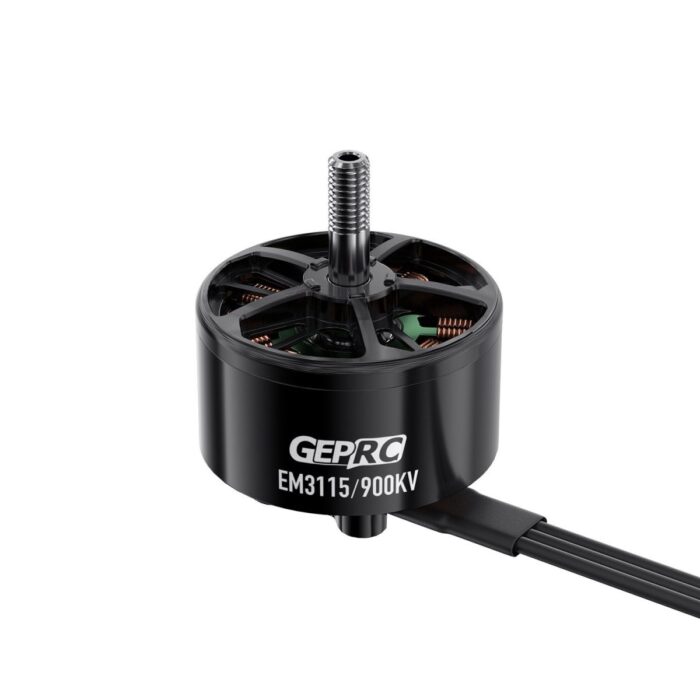

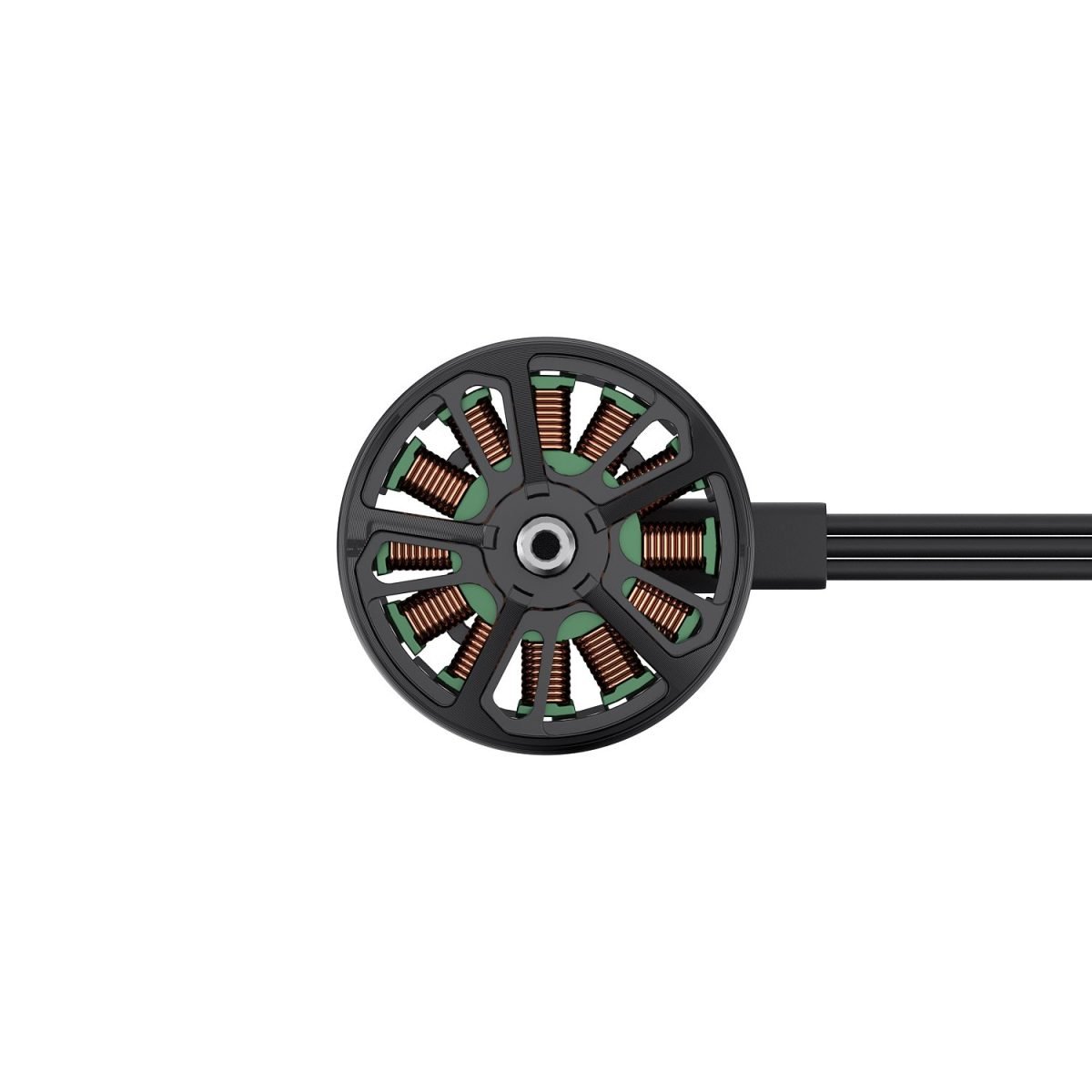

EM3115 900KV Motor
Out of stock
21 people are viewing this right now
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Feature
-  New EM series motors，mainly designed for long range FPV.
- High-strength M5 steel shaft
- High torque magnetic circuit design
- 19mmx19mm base
Specifications
- Model: EM3115 900KV Motor
- Max Watt: 1620W
- Peak current: 65A
- Interphase resistance: 46mΩ
- Propeller: 8-10inch Propeller
- Magnet: N52H
- Bearing type: NSK/NMB
- Configuration: 12N14P
- Dimension: φ37.5mmx30mm
- Shaft Diameter: φ5mm
- Shaft Protruding Length: 16mm
- Mounting holes: 19mmx19mm
- Lead: 310mm/18AWG
- ESC: 60A-80A
- Input Volts: 25.2V（6S LiPo)
- Winding: Single strand copper winding
- Weight: 115g(included wire)
- Suitable for :8-10 inch long range FPV
Includes
1 x EM3115 motor
4 x M3*11 round head screws
1 x M5 anti-slip nut
